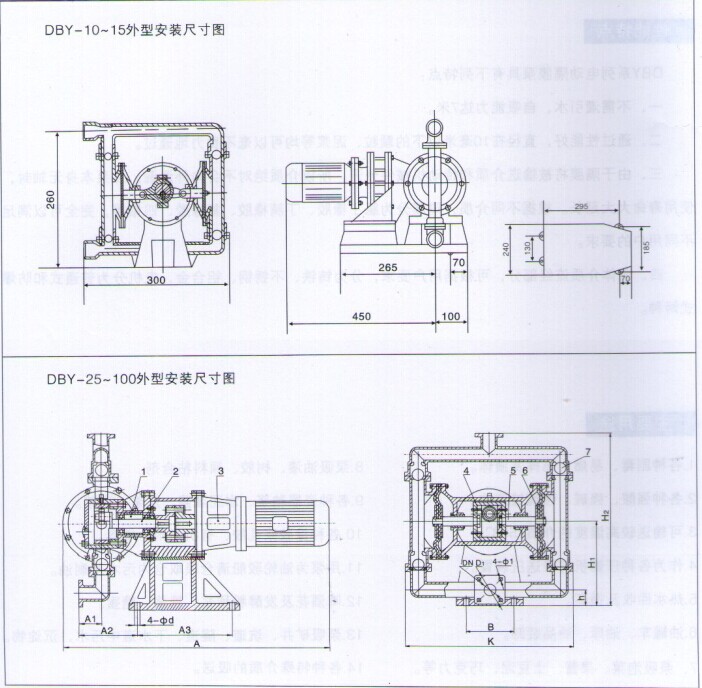

型號
| A | A1 | A2 | A3 | B | K | DN | D1 | Φ1 | Φd | h | H1 | H2 |
DBY-25 | 900 | 75 | 160 | 300 | 180 | 550 | 25 | 75 | 11 | 17.5 | 110 | 315 | 620 |
DBY-40 | 900 | 75 | 160 | 300 | 180 | 550 | 40 | 100 | 14 | 17.5 | 110 | 315 | 620 |
DBY-50 | 960 | 140 | 250 | 370 | 240 | 550 | 50 | 110 | 14 | 17.5 | 85 | 360 | 820 |
DBY-65 | 960 | 140 | 250 | 370 | 240 | 550 | 65 | 130 | 14 | 17.5 | 85 | 360 | 820 |
DBY-80 | 900 | 110 | 0 | 700 | 390 | 800 | 80 | 150 | 17.5 | 17.5 | 130 | 470 | 980 |
DBY-100 | 900 | 110 | 0 | 700 | 390 | 800 | 100 | 150 | 17.5 | 17.5 | 130 | 470 | 980 |
